STORAGE RACK BP-PRO, Series 45
skladišni_regali_
skladišni_regali_
skladišni_regali_
Picture of STORAGE RACK BP-PRO, Series 45
Picture of STORAGE RACK BP-PRO, Series 45
SKU: BP-PRO-serija45
In stock
STORAGE RACK BP-PRO, Series 45
SKU: BP-PRO-serija45
In stock
  • Available in various dimensions
  • Load capacity 320–770 kg per shelf level
  • Freestanding, stable, and robust structure
  • Uprights with “omega” profile
Call for pricing

STORAGE RACK BP-PRO, Series 45

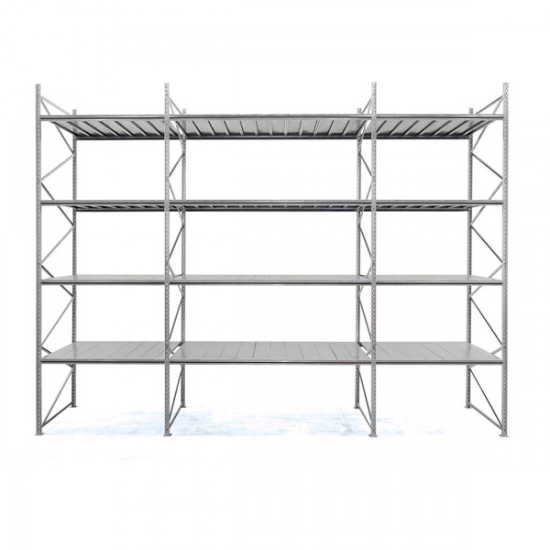

The BP-PRO model is one of the best-selling shelving systems for warehouses of various purposes. With extremely high load capacities ranging from 320 to 770 kg per shelf level, it is ideal for efficient storage.

  • Uprights: Omega profile, 55x55 mm
  • Frame load capacity: 4600 kg
  • Base plates included for floor anchoring (standard equipment)
  • Shelves with metal decking support loads of up to 770 kg
  • Tested and certified according to UNI EN 15629:2009, 15878:2010, 1993-1-3:2007, and UNI EN 15635:2009

Dimensions:

  • Standard upright heights: 2200, 2700, 3200, 3700, 4200 mm
  • Standard shelf lengths: 1500, 1800, 2000, 2400 mm
  • Standard shelf depths: 600, 800, 1000, 1200 mm

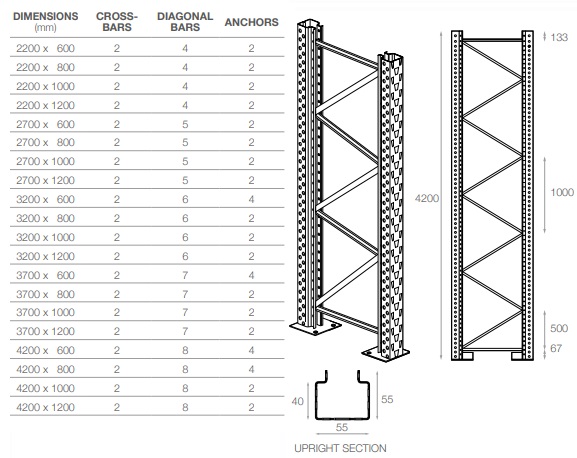

Standard dimensions of uprights:

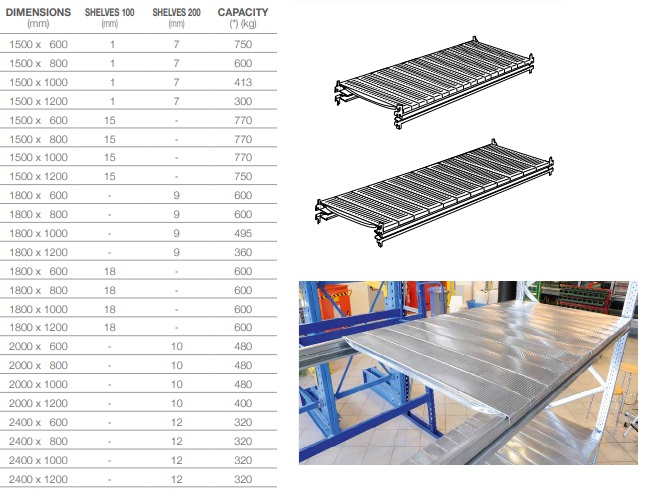

Standard shelf dimensions and load capacity:


Note: When calculating the total width, add 55 mm for each upright between shelf sections and 90 mm for the outer ends. For example, if you have 2 sections of 1800 mm each, the total width is calculated as follows:

(1800 + 55) + (1800 + 55) + 90 mm = 3800 mm



Overview

STORAGE RACK BP-PRO, Series 45

The BP-PRO model is one of the best-selling shelving systems for warehouses of various purposes. With extremely high load capacities ranging from 320 to 770 kg per shelf level, it is ideal for efficient storage.

  • Uprights: Omega profile, 55x55 mm
  • Frame load capacity: 4600 kg
  • Base plates included for floor anchoring (standard equipment)
  • Shelves with metal decking support loads of up to 770 kg
  • Tested and certified according to UNI EN 15629:2009, 15878:2010, 1993-1-3:2007, and UNI EN 15635:2009

Dimensions:

  • Standard upright heights: 2200, 2700, 3200, 3700, 4200 mm
  • Standard shelf lengths: 1500, 1800, 2000, 2400 mm
  • Standard shelf depths: 600, 800, 1000, 1200 mm

Standard dimensions of uprights:





Standard shelf dimensions and load capacity:


Note: When calculating the total width, add 55 mm for each upright between shelf sections and 90 mm for the outer ends. For example, if you have 2 sections of 1800 mm each, the total width is calculated as follows:

(1800 + 55) + (1800 + 55) + 90 mm = 3800 mm
