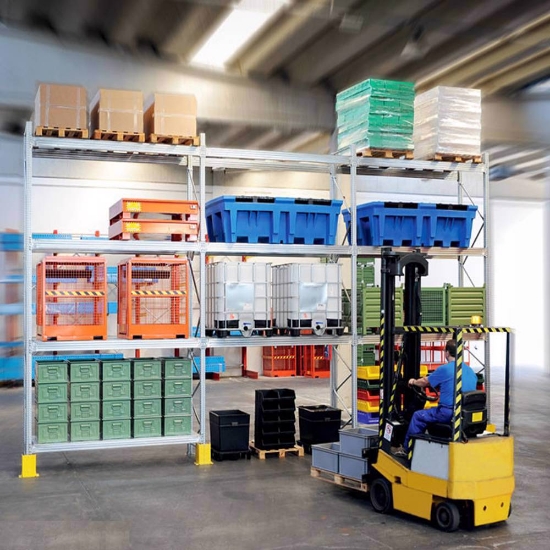

PALLET RACK DEPO (Galvanized Finish)

An ideal solution for safe and efficient storage of palletized and non-palletized goods. Ensures durability and maximum utilization of warehouse space, making it the best-selling pallet rack model.

• Load capacity: 700-1200 kg per pallet position
• Upright load capacity: 11600 kg or 15150 kg
• Galvanized finish
• Certified and compliant with UNI EN 15512:2009, 1993-1-1:2018, 1993-1-3:2007, 1993-1-8:2005, and UNI EN 15635:2009

Standard upright dimensions (height x depth):

• 1970 x 800 mm / 1970 x 1000 mm
• 2475 x 800 mm / 2475 x 1000 mm
• 2970 x 800 mm / 2970 x 1000 mm
• 3995 x 800 mm / 3995 x 1000 mm
• 4986 x 1000 mm
• 5978 x 1000 mm

Standard beam lengths (widths): 1200 / 1800 / 2200 / 2700 / 3300 / 3600 mm

Note: When calculating total dimensions, add 96 mm per beam width for uprights, and 220 mm to the total width. For example, for 3 bays of 1800 mm each, the total rack width is 5908 mm.

(1800+96) + (1800+96) + (1800+96) + 220 = 5908 mm

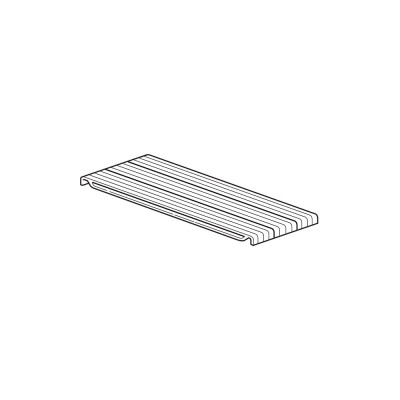

Decking is optional:
