ARCHIVE AND STORAGE MODULAR SHELVING SYSTEMS BP-VARY

The BP-VARY professional shelving system is known for its high-quality design, solid and stable structure, and flexible layout. Shelf assembly requires no screws or additional tools. The structure ensures excellent strength and stability.

The BP-VARY shelving system is fully adaptable to your needs and can be used in a wide range of environments. It is especially suitable for:

• Archives (storage of binders or books)
• Warehouses for auto parts and various components
• Workshops, industrial environments, and storage facilities
• Garages and storage rooms for private use
• Cold rooms, hospitality businesses, and retail stores
• Hotels, hospitals, and schools

The BP-VARY shelving system is a universal racking solution that provides optimal organization for a wide variety of storage needs. It is ideal for archiving documentation in companies, whether storing binders or archive boxes. It is used in warehouses and industry for storing goods and also finds use in museums and galleries for storing books and boxes — suitable for both open and closed shelving units.

This shelving system has proven ideal for use in hospitals, hotels, schools, universities, and other institutions.

The shelving system is available as standard in a galvanized finish, with an optional powder-coated version in a RAL color of your choice.

The shelves are adjustable in 25 mm increments, while the 30 mm shelf height and slim upright profile ensure maximum use of available space.

What sets the BP-VARY shelving system apart is its dimensional flexibility. It can be assembled in virtually any configuration, based on modular dimensions. This allows for adjustments not only in height but also in depth and shelf spacing across the width.

Standard dimensions:

• Heights: 2000, 2500, 3000, 3500, 4000, 4500, 5000 mm
• Depths: 300, 400, 500, 600, 700, 800, 1000 mm
• Widths: 550, 700, 850, 1000, 1150, 1300, 1500 mm

Instead of cross braces, “H” profiles can be used to allow installation in the middle of the room and enable easy access from both sides.

By combining these dimensions, we have successfully helped most of our customers solve their storage challenges. When calculating total dimensions, it is important to include the width of the upright posts, which extend 24 mm on each side (half the post width).
Simply put, if you want 2 shelving segments, each 1000 mm wide, the total length with uprights would be 2048 mm (2x1000 mm + 48 mm for uprights).

Available version:
Galvanized (zinc-coated)

Powder-coated finish (color available according to RAL chart)

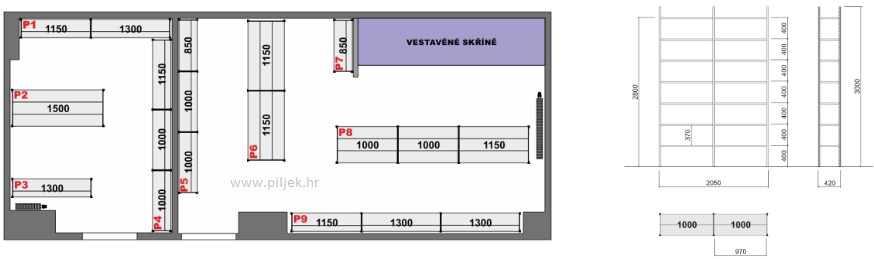

For any additional questions, quotes, or design sketches, please feel free to contact us.

Note: When sending an inquiry, please include the desired shelf dimensions (height x total width x depth) in the message.

Assembly instructions for the shelving unit:

Shelving unit installation on site:
